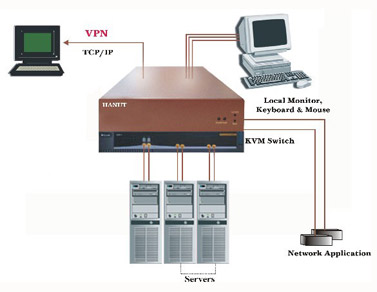

Hanut GrandView(tm) KVM Over IP Switches |
|
|
|
|
|
|
|
| Technical
specifications |

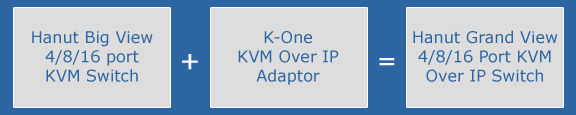

| Hanut
India GrandView KVM over IP switch is composed of
Hanut India BigView PS2 kvm switch and K-One (tm),
a kvm over IP adapter from Replicom Israel. |
| |
 |
| |
| Technical
specifications of Hanut India BigView PS2 kvm switches |
| |
| Model
Name |
BigView
-104R |
BigView
-108R |
BigView
-116R |
| PC
Port |
04 |
08 |
16 |
| Console
Port |
01 |
01 |
01 |
| PC
Port Connector |
PS/2
keyboard mini Din 6 pin
PS/2 mouse mini Din 6 pin
VGA HDDB 15 pin
(All female type) |
| Console
Port Connector |
PS/2
keyboard mini Din 6 pin
PS/2 mouse mini Din 6 pin
VGA HDDB 15 pin
(All female type) |
| PC
selection |
On
Screen Display (OSD), Hot Key, Push Button |
| PC
port LED |
04 |
08 |
16 |
| Bank
7 segment LED |
01 |
| On
Screen Display |
Yes |
| Scan
interval |
5
to 99 seconds |
| Keyboard
emulation |
PS2 |
| Mouse
emulation |
PS2 |
| Mouse
conversion |
PS2
to PC serial mouse at console |
| VGA
resolution (Max.) |
1920
× 1440 |
| Bandwidth |
200
MHz |
| Daisy
chain Max. level |
8
levels |
| Max.
PC connections |
116 |
120 |
128 |
| Housing |
Metal |
| Operating
temperature |
5
to 45 Degree C |
| Storage
temperature |
0
to 60 Degree C |
| Humidity
|
0
to 80%, Non-condensing |
| Size |
1U
rack mountable |
1U
rack mountable |
2U
rack mountable |
|
| |
| Technical
specifications of K-One (KVM
over IP adapter from Replicom Israel) |
| |
| Dimensions
(Height / Width / Depth) |
44.45mm
(1U) / 172mm / 233mm |
| Environment |
Operating
temperature 5C to 40C
Storage temperature -20C to 50C |
| Power
Supply |
100
- 240VAC, 47 - 63 Hz Auto Sensing |
| Network
& Serial Ports |
Dual
10/100 LAN ports
Dual RS232 (serial) ports |
| Target
KVM |
PS2
(miniDin 6) keyboard and mouse
Video HD15 VGA |
| Local
KVM console |
PS2
(miniDin 6) keyboard and mouse
Video HD15 VGA |
| Front
panel |
System
reset switch
GoLocal / Reset factory defaults switch |
|
| |
|
| Select
Hanut India GrandView KVM over IP switches for a
high quality KVM Over IP solution. |
| |
|
